2007 April 12.

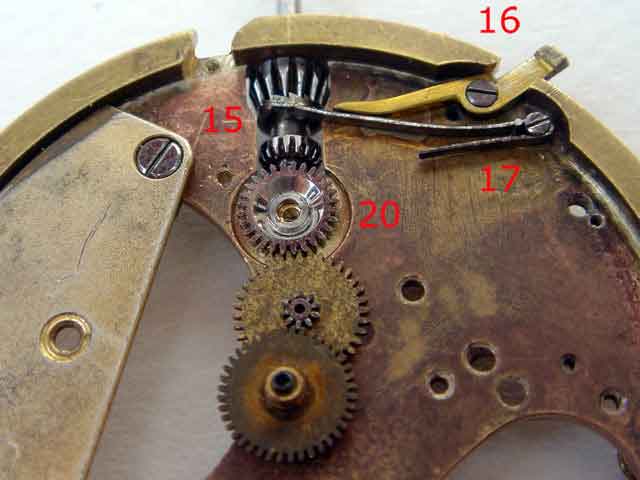

Winding and hand-setting:

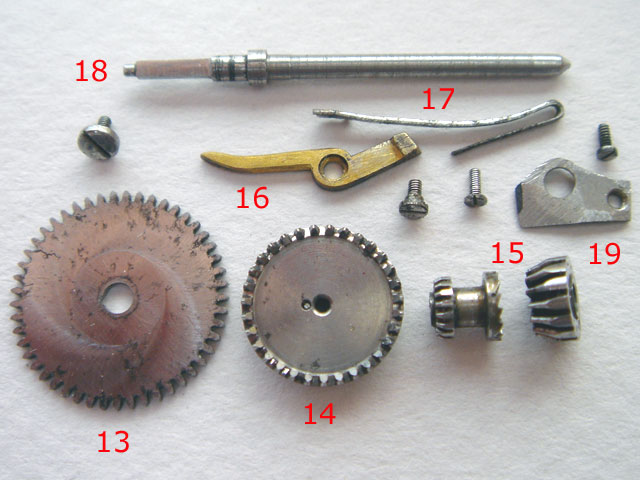

The photos demonstrate that only a few parts are useful. Parts are missing, for instance the lever with its spring to lock the loop shaped spring to match the hand-setting.
The setting wheel is -like one recognizes by the cutout- too small.

Useful are:
(13) the little transmission wheel, (14) the separate crown wheel, (15) the winding pinion and
the castle wheel at the winding stem, (16) the lever to set the hands.

To manufacture are:
(

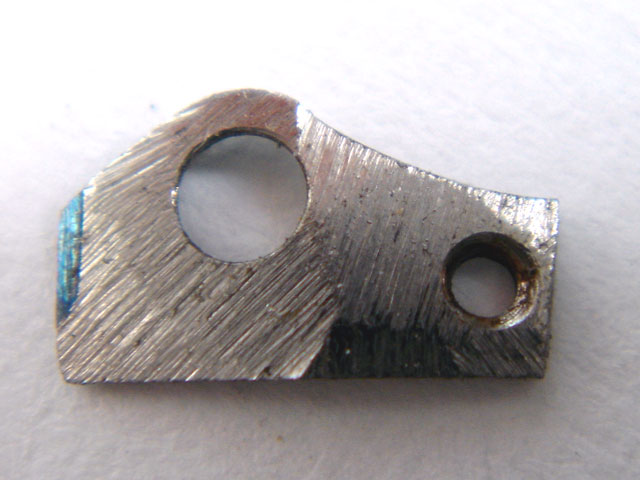

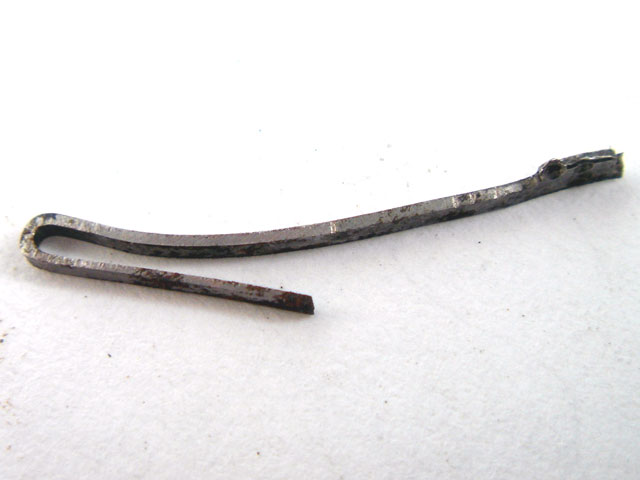

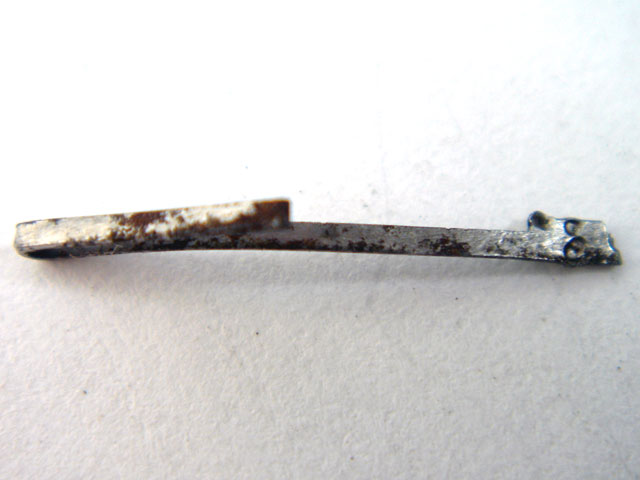

17) the loop shaped spring, (18) the winding stem, (19) the winding stem bridge, (20) the setting wheel, and parts next to the winding mechanism which fit in the original bore holes.

<<
>>
<<
